Reactive Compensator for Industrial Applications

Payment Type:T/T

Incoterm:EXW

Min. Order:1

Transportation:Ocean

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Voltage-Rated DC: 800v, 1000v (1kv)

Voltage-rated AC: 440v, 690v

Supply Ability & Additional Information

Transportation: Ocean

Payment Type: T/T

Incoterm: EXW

Packaging & Delivery



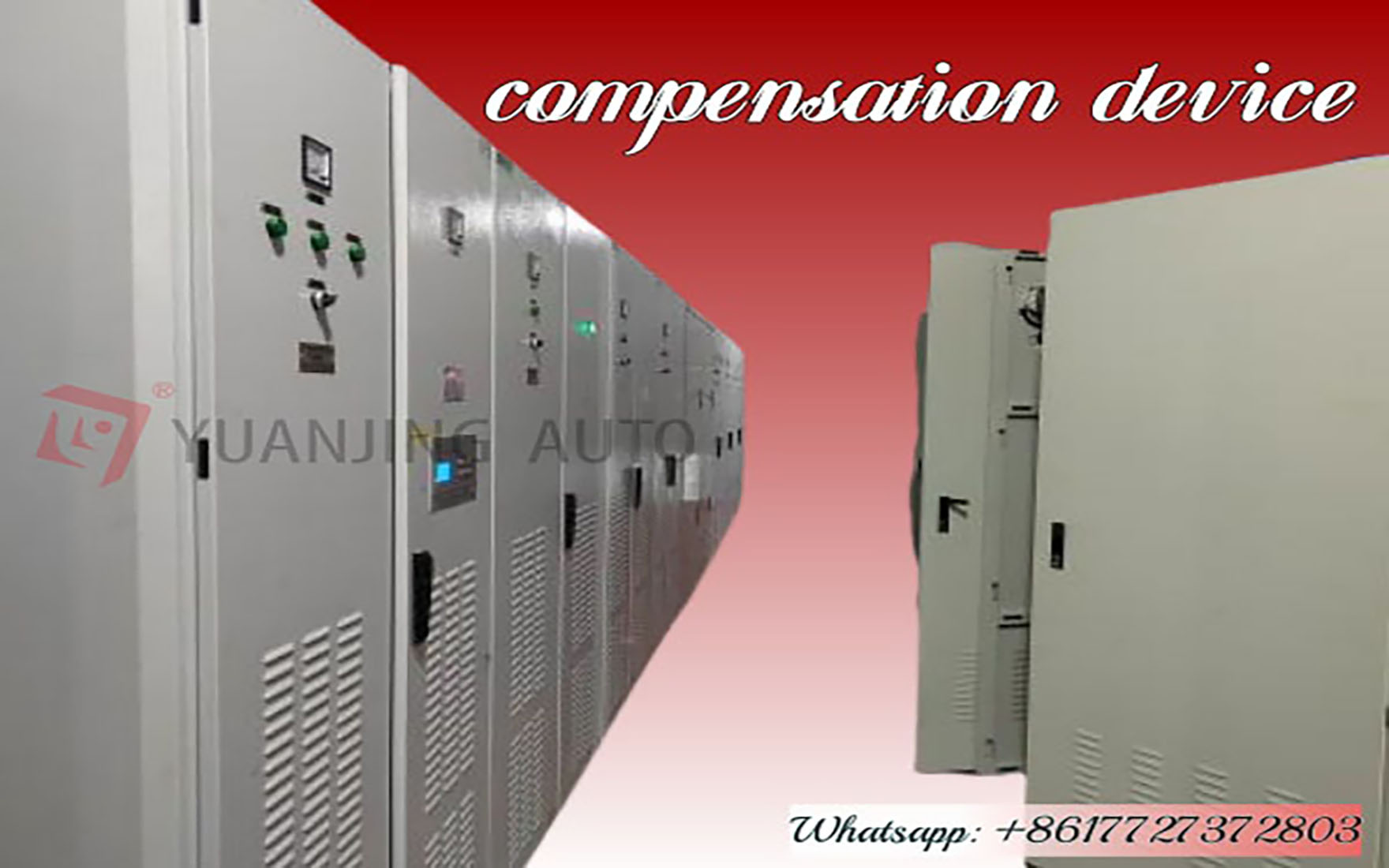

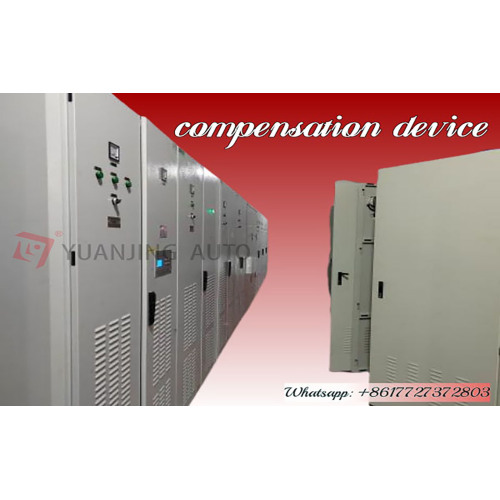

compensation cabinet



reactive compensator for Industrial Applications

What is reactive compensation?

Reactive compensation is the process of adding or injecting positive and/or negative VARs to a power system to attain voltage control. Depending on the application, it can be achieved passively with capacitors and reactors, or actively with power electronic solutions, such as STATCOMs and Static VAR Generators (SVGs).

More significantly, reactive compensation power is an essential component of an electric power system. Rotating machines could not rotate without it, transmission lines could not transmit active power, and the ability to control or compensate reactive power offers huge benefits.

Benefits of the reactive compensator

1. Use reactive power compensator technology to improve the power factor of low-voltage power grids and electrical equipment.

2. Reduce energy consumption, improve power grid voltage quality, and stabilize equipment operation.

3. Reduce power loss. After using capacitors to improve the power factor, the total electric wave will be reduced, which can reduce the power loss of the power supply current and power terminals.

4. Improve the power supply quality, increase the power factor, reduce the total load current and voltage drop, and improve the power factor.

Common voltage

application

Equipment composition

Compensation mode

800v, 1000v, 640v

Industrial and mining enterprises, oil fields, ports and terminals

Single-phase filter capacitor， Quality filter reactors， PLC controller

three-phase compensation, three-phase separate compensation and combined compensation, and separate compensation
